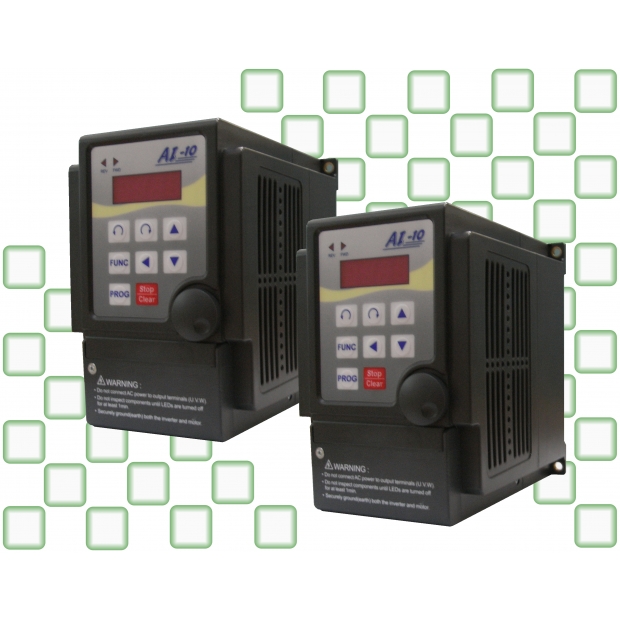

AI-10 Inverter

AI-10 Inverter

The AI-10 series inverters deliver excellent control performance and high stability, supporting both single-phase and three-phase power input.

They are widely used in industrial applications such as fans, pumps, conveyors, processing machinery, and automation control systems.

The series covers various models and voltage ratings to meet different on-site requirements.
/
DETAIL
Featuring an IPM (Intelligent Power Module) design, it integrates IGBT power devices and multiple protection logics, significantly enhancing overall performance and offering greater stability and safety for industrial control equipment.
Applicable Models and Specification
Type AI2 AI4
Models AI2-304 AI2-307 AI2-315 AI2-322 AI4-307 AI4-315 AI4-322
Output Voltage Three-phase 220V Three-phase 380V / 440V
Power Range 0.37kW 0.75kW 1.5kW 2.2kW 0.75kW 1.5kW 2.2kW
Product Features
  • Wide frequency range: standard 0.5 ~ 60Hz
  • Sine-wave PWM control: smooth operation, high efficiency, low noise
  • Supports 8-step speed switching: flexible automatic operation settings
  • Intuitive HMI: LED digital display with knob/button dual control
  • Multiple control inputs: supports 0–10V, 4–20mA analog input and digital terminals
  • Complete protection mechanisms: built-in overcurrent, overvoltage, undervoltage, and overheat protection
  • ompact size for diverse installation needs: suitable for distribution panels, control boxes, and small machinery
  • IPM module design enhances reliability, reduces failure rate, and ensures long-term stable operation in industrial settings
IPM Module vs Traditional Design Comparison
Item AI-10 (Using IPM) Traditional Inverter Design
Power Component Integrated IPM Module Discrete IGBT + Driver + Protection Circuit
Protection Functions Built-in protections for overcurrent, overvoltage, overheat, and short circuit Requires additional protection or weaker logic
Thermal Management & Lifespan Excellent heat dissipation and long lifespan Additional cooling design required
Stability & Reliability High Moderate
Maintenance & Replacement Modular, easy and quick maintenance Separated components, more complex maintenance
Size & Integration Level Compact and highly integrated Larger size
