Analog Input Module

Analog Input Module

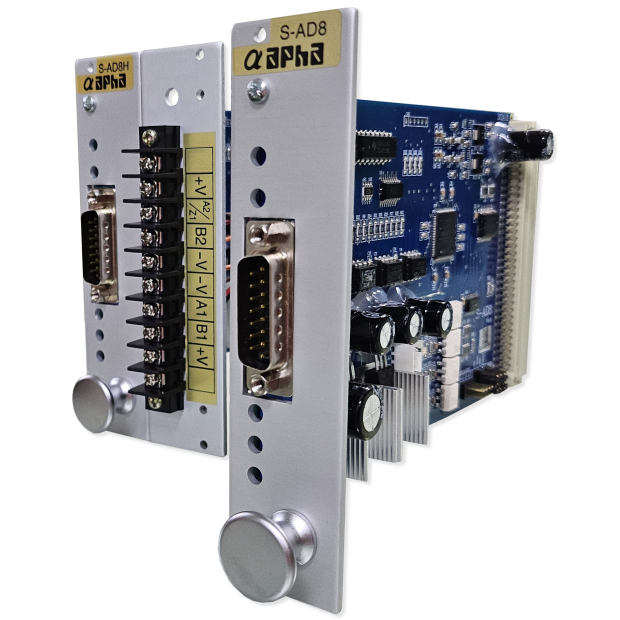

The S-AD8 is a high-performance embedded analog input module designed for industrial automation systems.

With 8 channels of analog-to-digital conversion and 2 high-speed counters, it provides a reliable and expandable solution for various data acquisition and control applications.
/
DETAIL
Key Specifications
  • Analog Input Channels: 8 channels of 12-bit A/D conversion
  • High-Speed Counters: 2 channels (terminal block available as an option)
  • Input Power: DC +24V (tolerance: -5% ~ +5%)
  • Operating Temperature: 0 to 60°C
System Features
  • Modular Design
    Enables quick installation and replacement, reducing maintenance time and cost.
  • Flexible Expansion
    Compatible with 14-slot, 7-slot, or 4-slot aluminum chassis, allowing customized configuration based on application needs.
  • Industrial-Grade Aluminum Enclosure
    Reinforced housing offers excellent durability and resistance to electromagnetic interference, ideal for harsh industrial environments.
