S3-CPU

S3-CPU

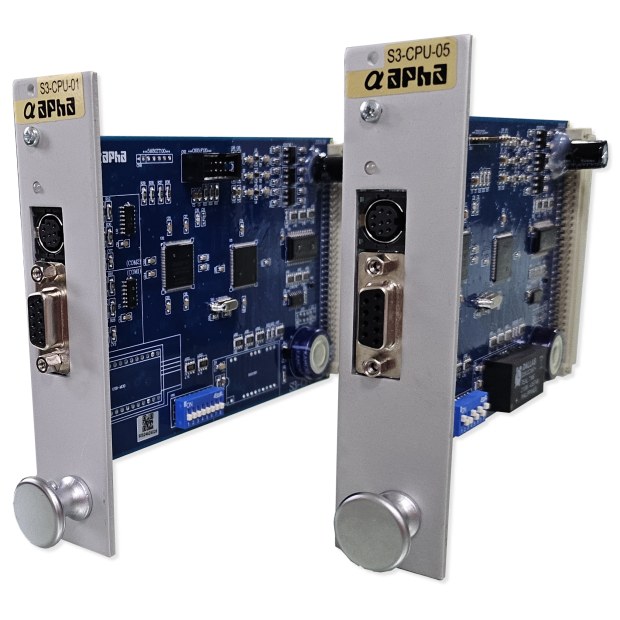

The S3-CPU is an embedded central control board designed to integrate seamlessly into multi-slot PLC systems.

It offers reliable and high-performance computing and data communication capabilities, making it ideal for a wide range of industrial automation environments.

The modular design ensures flexible configuration to meet various on-site requirements.
/
DETAIL



Key Features:

PC Connectivity
Enables the PC to directly read from and write to internal PLC contact points and data registers. Ideal for data collection, condition-based control, and real-time monitoring applications.

PC Communication Interface
Equipped with built-in RS-232C / RS-485 / Modbus RTU ports, supporting direct connection with a PC.
Real-time communication is enabled without the need for additional modules.

Real-Time Clock (RTC) – Optional:
Features a built-in calendar and clock function that provides year, month, day, hour, minute, and second data. Date/time information can be stored in registers D8240 to D8246, supporting time-based control operations.

Flexible Hardware Configuration

The S3-CPU’s embedded design allows it to be integrated into 14-slot, 7-slot, or 4-slot aluminum chassis, depending on application scale and field requirements.

Scalable Configuration: Adjust the number of control slots to suit system complexity.

Industrial-Grade Housing: Durable, anti-interference aluminum chassis for harsh environments.

Modular Maintenance: Easy installation and quick replacement for system upgrades or maintenance.
