SIPC series
Key Specifications Overview
| Item | Description |
|---|---|
| CPU | DM&P Vortex86DX3 - 1GHz 32-bit x86-architecture dual-core processor |
| RAM | 2GB DDR3 Onboard |
| LAN | 10/100Mbps Ethernet x1 + Giga LAN x1（Realtek 8111F） |
| Display | VGA: Maximum resolution up to 1920x1080 @ 60Hz |
| Connectors | SATA x1 Mini PCI-E connector x1 Serial Port x1 (RS-232) Serial Port x1 (default: RS-232, optional: RS-232/422/485) USB 2.0 port x4 RJ45 Ethernet x2 D-Sub 15 pin VGA x1 |
| Watchdog Timer | Software programmable from 30.5us to 512 seconds x2 sets |
| Power Requirement | Single Voltage +5V @1.3A (Typical) |
| Operating Temp. | 0°C ~ +70°C |
Product Overview
The S6-CPU is powered by a DM&P Vortex86DX3 dual-core processor and equipped with 2GB DDR3 memory, versatile I/O interfaces, and dual Ethernet ports.
Its fanless architecture ensures stable performance in harsh industrial environments, delivering long-term reliability.
Modular Integration and Expansion Options
The S6-CPU offers multiple configuration options to meet diverse deployment requirements.

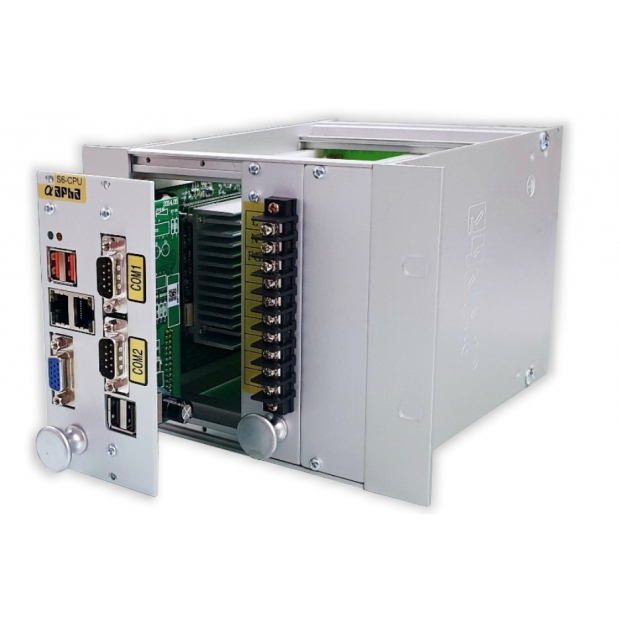

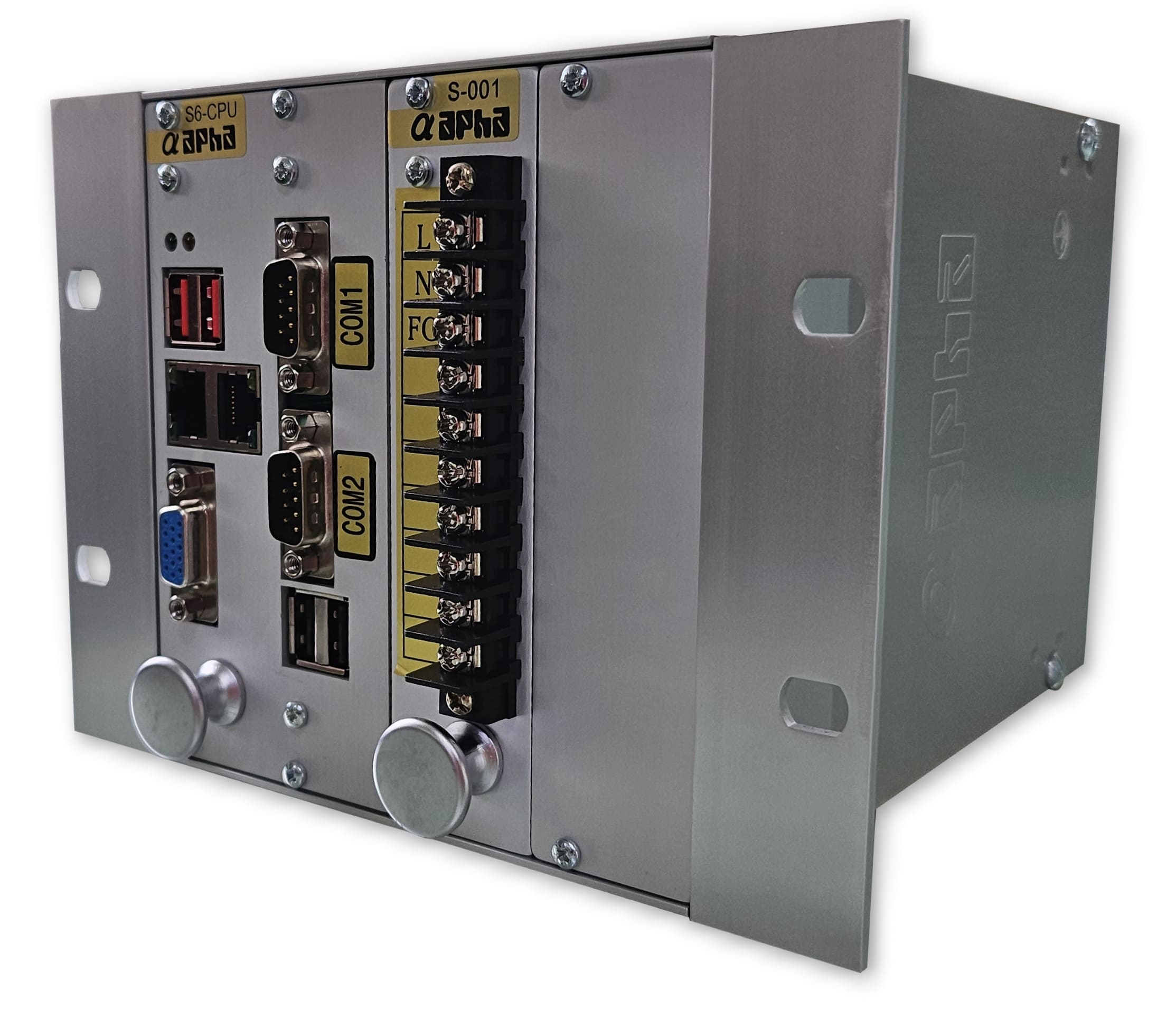

SIPC-200
(with Power Module)
All-in-one aluminum chassis with integrated 5V power module.
Standardized embedded design for quick, mid-scale control system deployment.

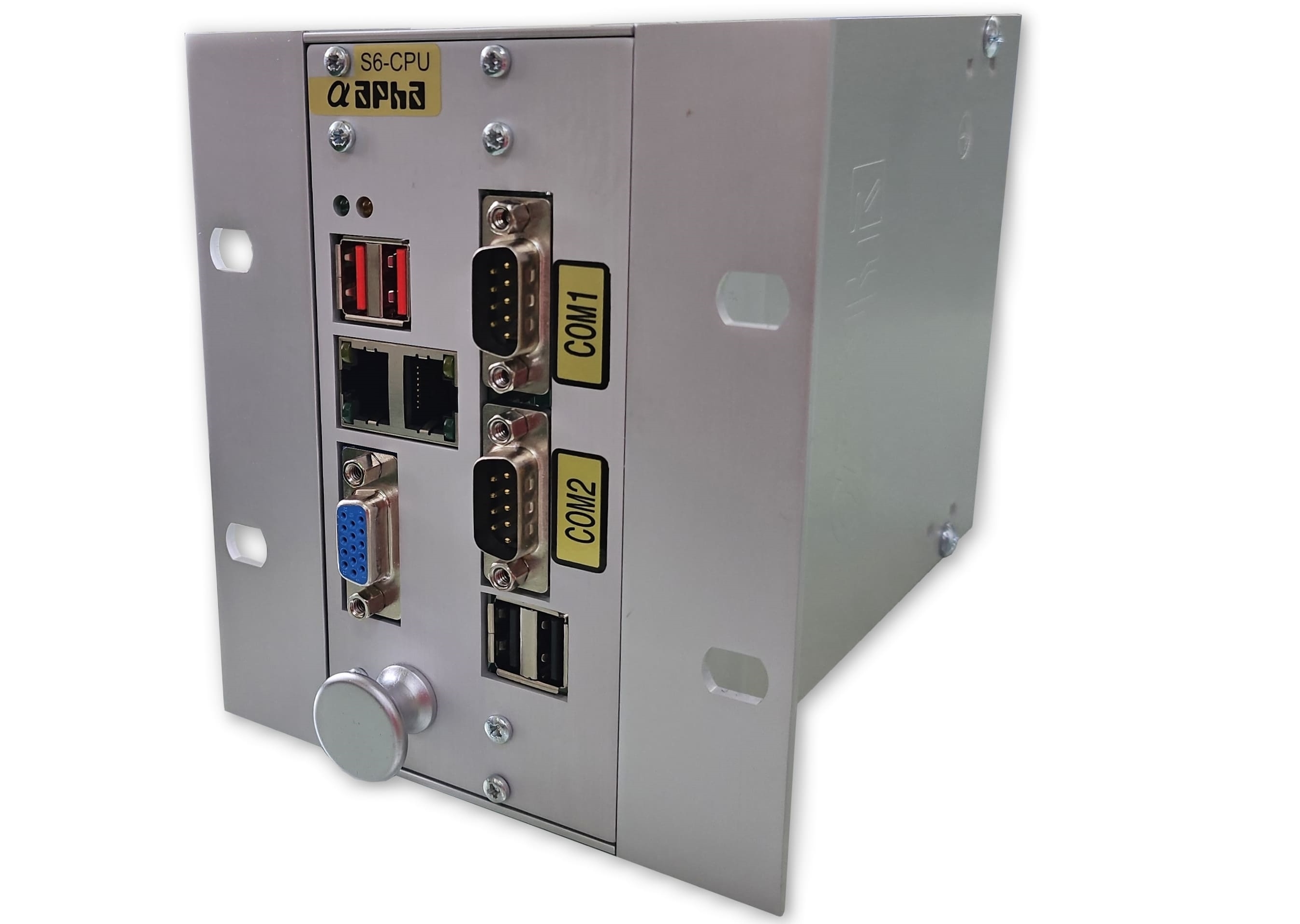

Mini Aluminum Enclosure
All-in-one aluminum chassis with integrated 5V power module.
Standardized embedded design for quick, mid-scale control system deployment.

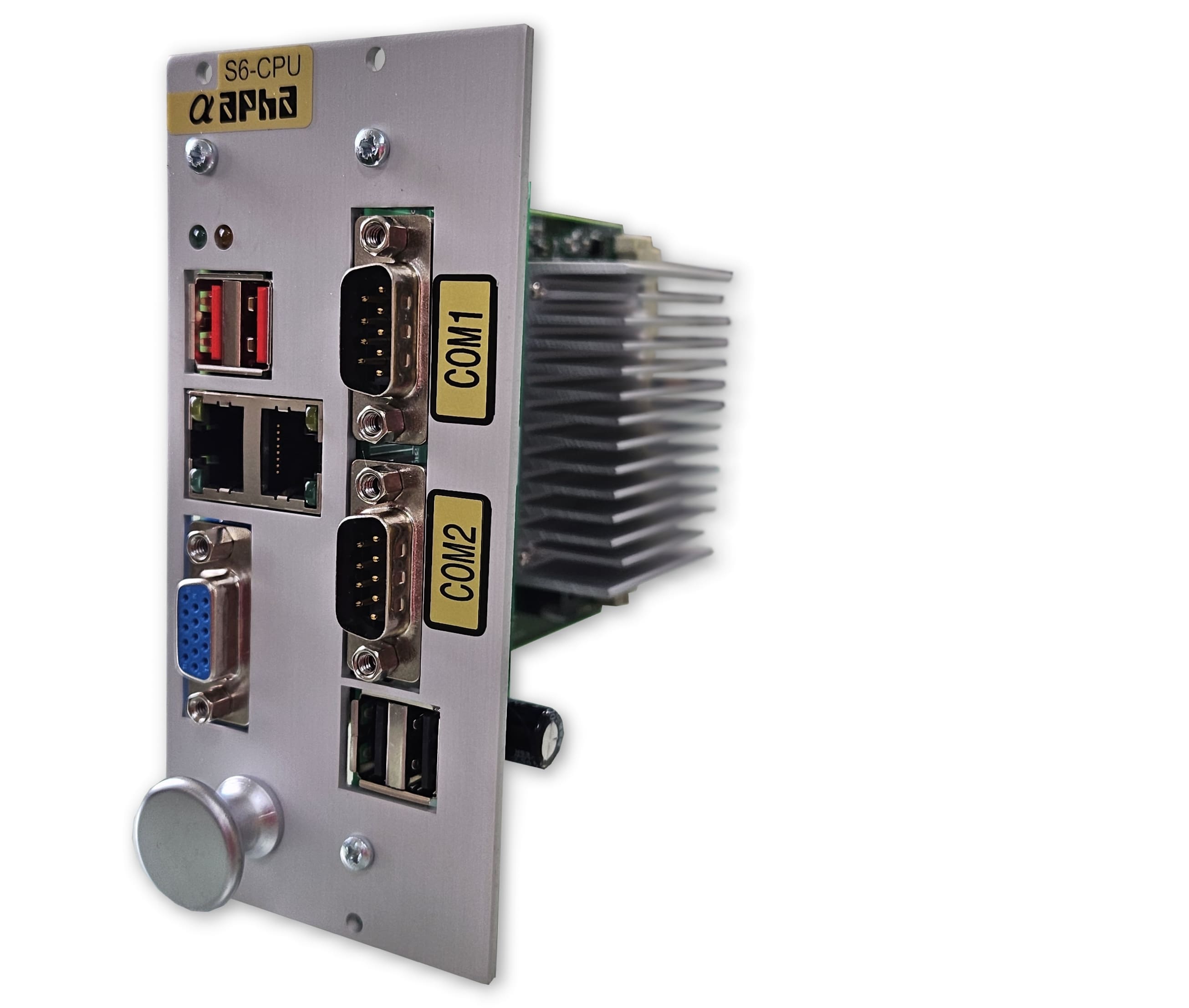

Bareboard Integration
Fits 14-slot or 7-slot systems—perfect for centralized or modular control platforms.
